Unity Raw 10 FB4

$3,765.00

The ELITE 10 ILDA is a full-colour RGB, diode-based laser systems, designed for production and touring clients who want to produce high impact aerial beam effects, as well as higher output laser graphics, logos and text. The ELITE 10 ILDA is also integrated into a robust housing, making it ideal for life on the road.

Add to cart
Product code: N/A
Social share:

Item description

The RAW 10 FB4 laser projector is perfect for professionals running large events, especially those with over 5,000 people. With its 10W output, it delivers powerful beam effects and can handle text, graphics, logos, and laser mapping. This full-color laser system works well for both indoor and medium-sized outdoor shows. It’s ideal for users looking to boost their laser setups for bigger events.

High-Power Laser Output

The RAW 10 FB4 features 2,700mW red (638nm), 2,700mW green (520nm), and 4,800mW blue (450nm) diodes. Together, these provide a bright and balanced white light, perfect for eye-catching displays. The laser scans at 30,000 points per second at , delivering smooth and accurate beam movements. The wide 50° scan angle allows it to cover large spaces, making it great for big venues. Its 50kHz analog modulation ensures smooth color changes, making fade-ins, fade-outs, and other effects look professional.

Integrated FB4 Control System

The RAW 10 FB4 includes the FB4 control system, which allows easy management of lasers from a PC, lighting console, or in auto mode. It supports major lighting control options like DMX, ArtNet, sACN, and timecode, making it simple to fit into advanced setups. The included QuickShow software lets users design and program their laser shows. The MoboLaser app (available on Apple and Android) allows mobile control, making adjustments quick and easy on-site.

Connectivity and Safety Features

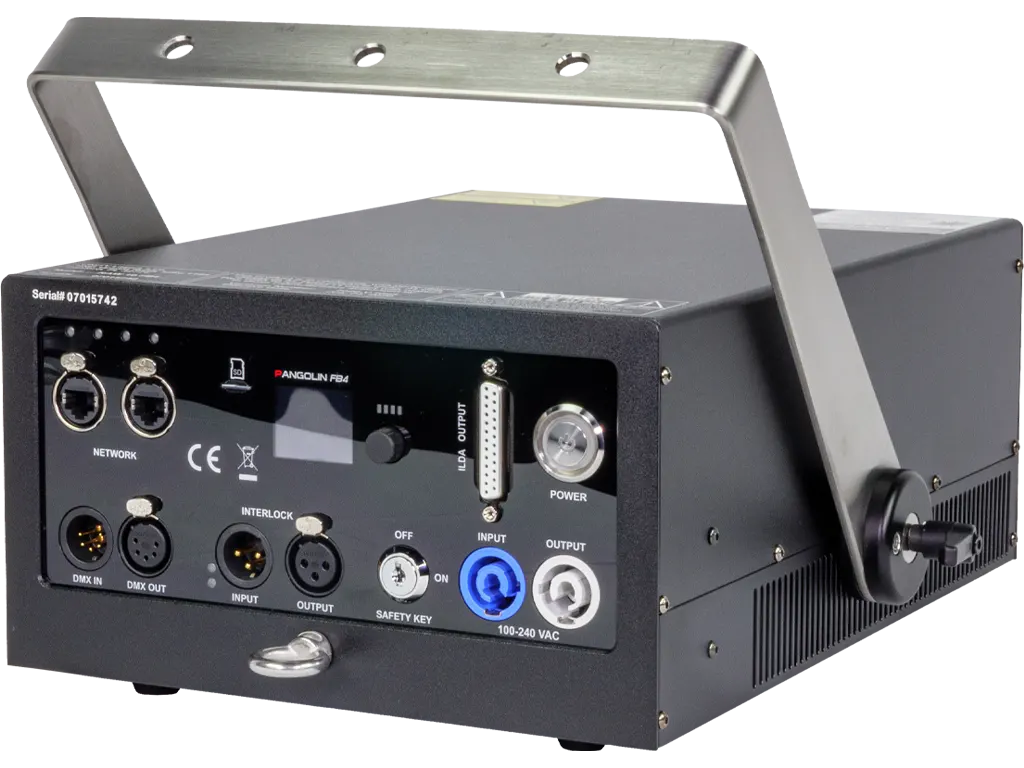

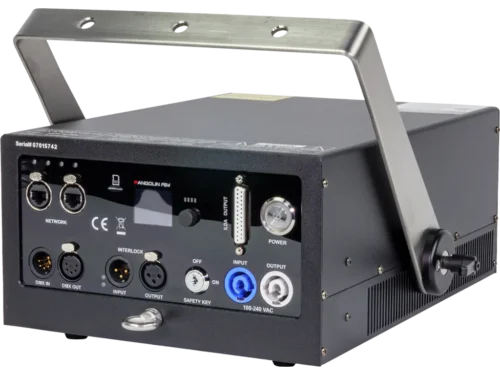

The RAW 10 FB4 has multiple connection options, including Ethernet, DMX in/out, power in/out, ILDA out, and E-STOP. A built-in network switch helps sync multiple projectors for larger shows, making it easy to create multi-laser performances.

Safety is a priority, and the RAW 10 FB4 meets EN 60825-1 and FDA regulations. Key safety features include a keyed interlock, emission delay, magnetic interlock, scan-fail safety, and a mechanical shutter. These features keep both users and audiences safe during shows. The laser also allows for external adjustments to its size, position, rotation, and color, giving users full control over their displays.

Key Features:

  • 10W full-color output for bright and clear visuals.
  • 30,000 points per second scanning speed for smooth shows.
  • Analog modulation for seamless color transitions.
  • FB4 control system with support for DMX, ArtNet, sACN, and QuickShow software.
  • Sound active mode to sync effects with music.
  • Built-in network switch for easy setup of multiple projectors.
  • Complies with EN 60825-1 and FDA regulations for safe operation.

What’s Included:

  • RAW 10 FB4 laser projector
  • QuickShow software
  • Protective case
  • E-STOP remote with a 10-meter cable
  • Ethernet cable (10 meters)
  • Power cable (1.5 meters)
  • Safety interlock and keys
  • Manual and quickstart guide

Why Choose the RAW 10 FB4?

The RAW 10 FB4 is a great choice for professionals who need a powerful laser system for larger events. Its 10W output and easy control options make it perfect for big indoor shows and medium-sized outdoor events. Whether you’re running a beam show, text and graphics display, or laser mapping, the RAW 10 FB4 delivers stunning visuals that impress any audience. With flexible control options, built-in safety, and easy setup, it’s a reliable and versatile option for any event.
