Unity Elite pro 10 FB4 (IP65)
$5,920.00

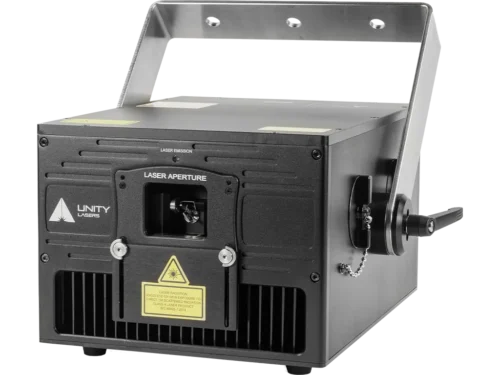

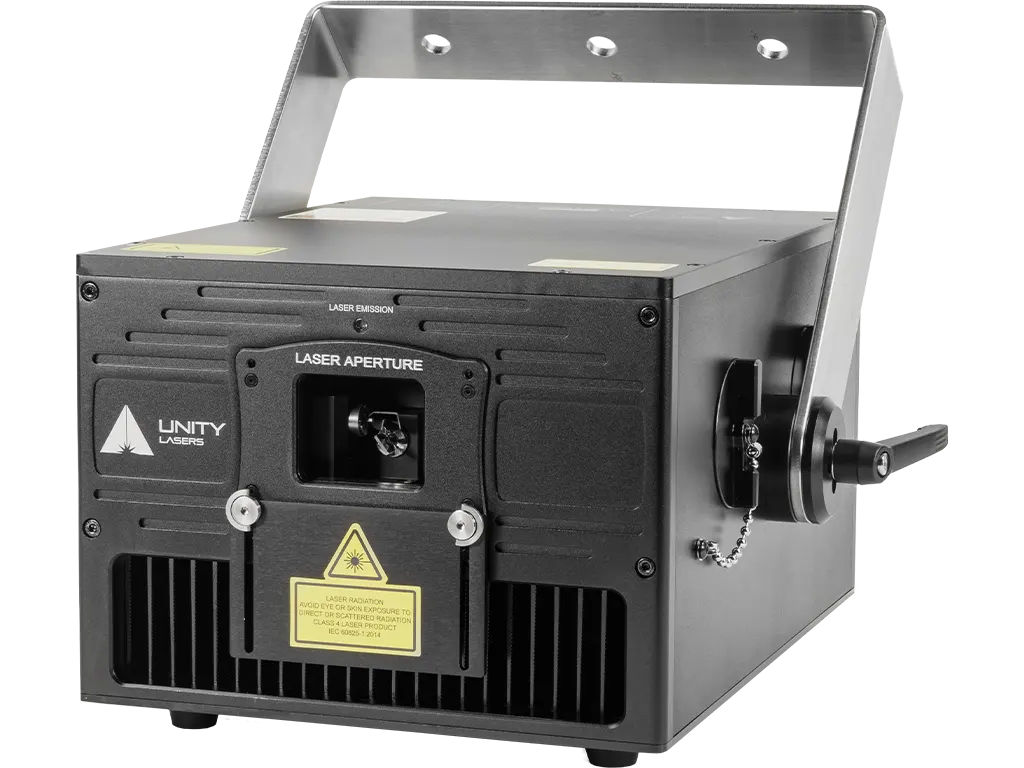

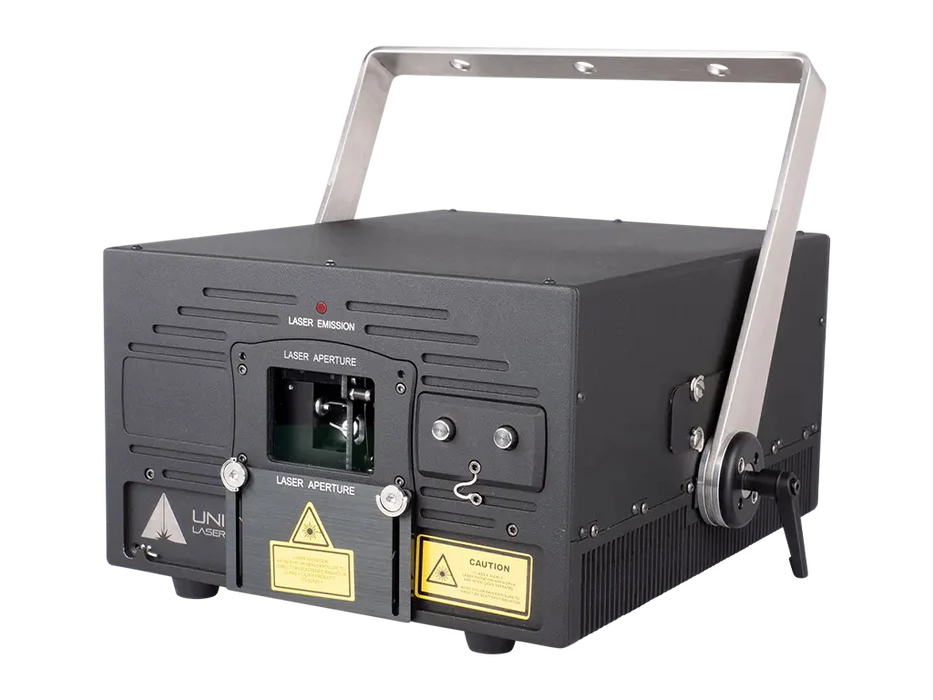

The ELITE 10 PRO FB4 is a full-colour RGB, diode-based laser system, with integrated Pangolin FB4 media server and robust housing. It is a great laser projector for lighting designers as well as special FX companies, who want to integrate lasers, into any multimedia setup.
Item description
The Elite 10 PRO FB4 IP65 is a high-performance laser projector designed for medium to large-scale events. With over 11W of optical output, it provides bright, clear visuals. Suitable for both indoor and outdoor environments, its IP65-rated housing ensures reliable operation in all weather conditions. This laser projector is ideal for beam shows, graphics, text, and mapping sequences, making it a versatile tool for professional lighting designers.
Bright and Precise Laser Output
Powerful RGB Diodes
The Elite 10 PRO uses RGB diodes to deliver exceptional brightness and vivid colors. With 3W of red (637nm), 4W of green (525nm), and 4W of blue (445nm), it ensures balanced and vibrant laser displays. Its optical correction technology guarantees a sharp beam profile, even over long distances. This makes it perfect for creating beam shows, logos, and detailed text projections.
Sharp Beam Focus
With a beam size of 6mm x 6mm and a beam divergence of less than 1.0mrad, the Elite 10 PRO provides clean, focused laser beams. This precision makes it ideal for high-quality laser effects and complex visuals. The sharp beam quality ensures clarity, even in large venues or outdoor spaces.
Advanced Control and Versatility
FB4 Control System
The FB4 control system allows for easy operation through Ethernet, ArtNet, DMX, sACN, or PC. It supports control from lighting consoles or PCs and can run in auto mode for pre-programmed shows. The included QuickShow software allows users to easily design custom laser shows, offering full creative control.
High-Speed Scanning System
The Elite 10 PRO features a fast 35,000 points per second scanning system with a 45° scan angle. This ensures smooth and accurate projections, ideal for complex graphics and detailed text. The system handles both simple and intricate laser designs with ease.
Built for Tough Environments
IP65-Rated Durability
The IP65 rating protects the Elite 10 PRO from dust and water, making it perfect for outdoor events. Its rugged housing ensures it operates reliably in challenging environments, including rain and extreme temperatures. This durability makes it ideal for long-term installations or outdoor performances.
Safety Features
The Elite 10 PRO includes several built-in safety features such as emission delay, keyed interlock, magnetic interlock, and scan-fail safety. A mechanical shutter adds another layer of safety, ensuring secure operation in crowded areas or high-traffic events.
Key Specifications
- Guaranteed Optical Output: >11W
- Red Diode: 3,000mW (637nm)
- Green Diode: 4,000mW (525nm)
- Blue Diode: 4,000mW (445nm)
- Beam Size: 6mm x 6mm
- Beam Divergence: <1.0mrad full angle
- Scanning Speed: 35,000 points per second at 8°
- Maximum Scan Angle: 45°
- Control Options: FB4 DMX (Ethernet, ArtNet, DMX, sACN)
- Power Requirements: 100-240V/50-60Hz
- Power Consumption: Max 350W
- Operating Temperature: -10°C to 45°C
- Ingress Protection: IP65
- Dimensions: 358mm (depth) x 338mm (width) x 191mm (height)
- Weight: 13.5 kg
Conclusion
The Elite 10 PRO FB4 IP65 is a powerful and versatile laser projector for professional events. With its 11W output, flexible control options, and IP65-rated housing, it’s built to handle both indoor and outdoor environments. Whether for beam shows, complex graphics, or high-quality text projections, the Elite 10 PRO delivers precision and performance every time.
