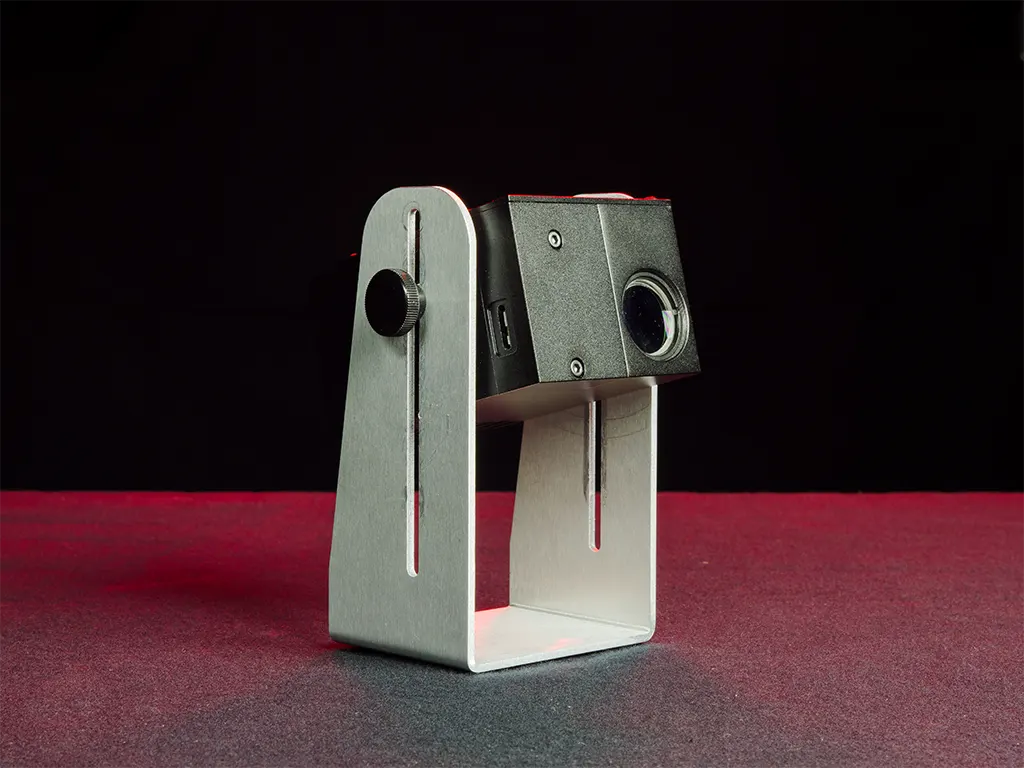

Beam Analyzer Measurement Device
Inquiry sent
Ask about this product
Send us your question and we'll come straight back to you.
Beam Analyzer Measurement Device
Not sure it is the right one?
Ask us about power, output or shipping before you order.
Mon – Fri 10 AM – 6 PM EST
Key Features:
- Beam Divergence: The Beam Analyzer measures divergence for each color—red, green, and blue—individually and together. This ensures sharper visuals with minimal beam spread.
- RGB Alignment: It provides precise measurements of RGB alignment to prevent color distortion and deliver high-quality visuals.
- Power Output: The device measures laser power output accurately, helping users monitor the intensity of their systems.
- Lens Collimation: It checks the focus of laser lenses, ensuring beams are perfectly aligned for optimal performance.

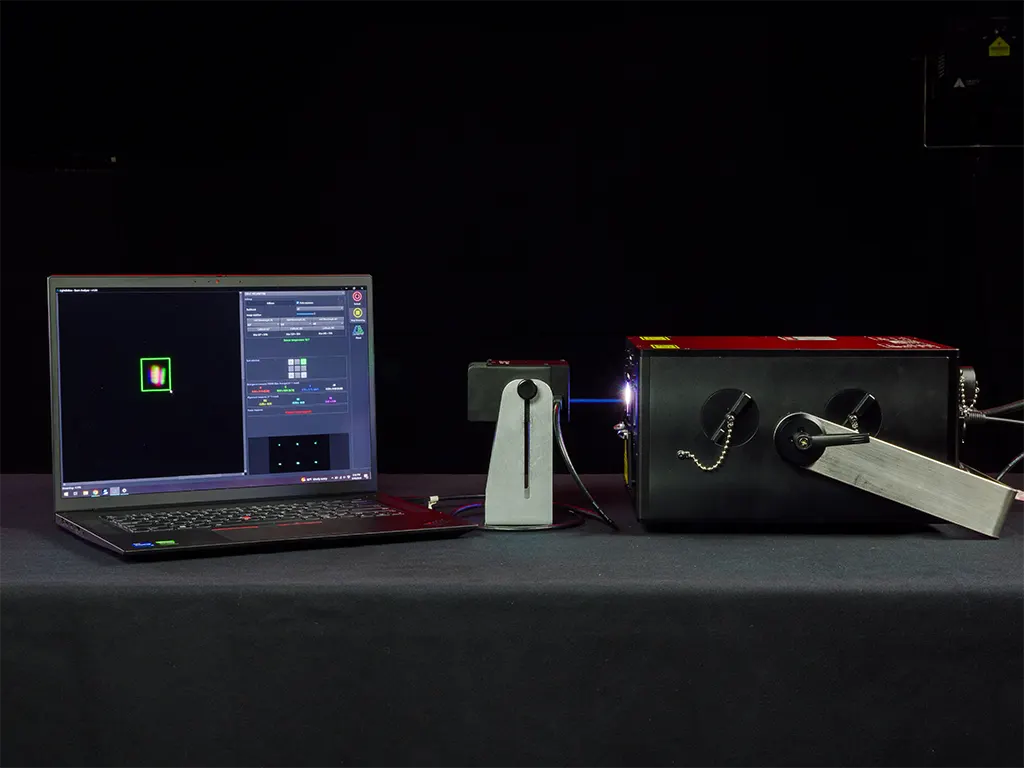

- Real-Time Data: Users can track live data and make adjustments as needed during setup or operation.
Specifications:
- Optical Power Measurement: Works with lasers from 0.1 W to 100 W.
- Power Accuracy: Measures within 1% of actual laser power output.
- Beam Divergence Resolution: Provides a precise reading of 0.01 mrad.
- Divergence Range: Measures divergence from 0.1 mrad to 10 mrad.
- Beam Diameter: Accepts input beams up to 22 mm in diameter.
- Wavelength Range: Detects wavelengths from 400 nm to 1000 nm, making it compatible with various laser types.
- Size: Compact at 100 x 75 x 57 mm, making it easy to fit into different setups.
- Weight: Light at just 500 grams, ensuring portability.
Why Use the Beam Analyzer?
Precision is critical for laser professionals. The Beam Analyzer helps you ensure that laser projectors meet the required specifications. By analyzing beam divergence, RGB alignment, and power output, it prevents performance issues that could affect your laser show. Accurate measurement ensures that beams are sharp, colors are vivid, and power levels are optimal. The Beam Analyzer includes software for real-time data tracking. The software generates reports, allowing users to make necessary adjustments quickly. Whether for small venues or large outdoor events, this tool ensures that your laser system is calibrated for the best possible results.Conclusion
The Beam Analyzer Measurement Device is an essential tool for laser projector operators. It provides real-time data, high accuracy, and the ability to handle powerful laser systems. This makes it a must-have for laser show professionals. From checking beam divergence to monitoring power output, the Beam Analyzer ensures your laser system operates at its peak.Reviews come from account holders, so please sign in to write one.
