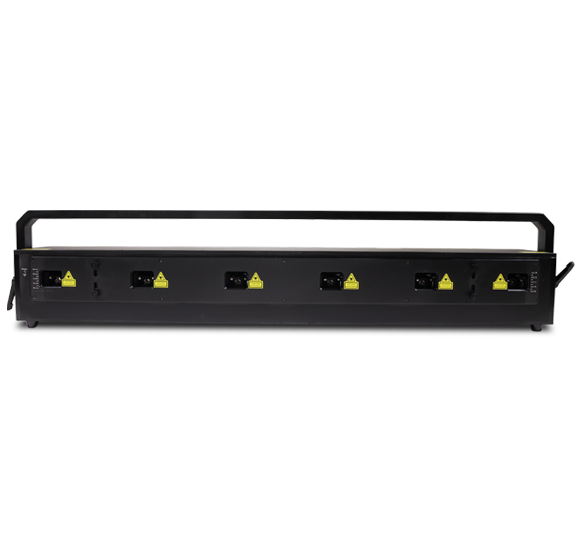

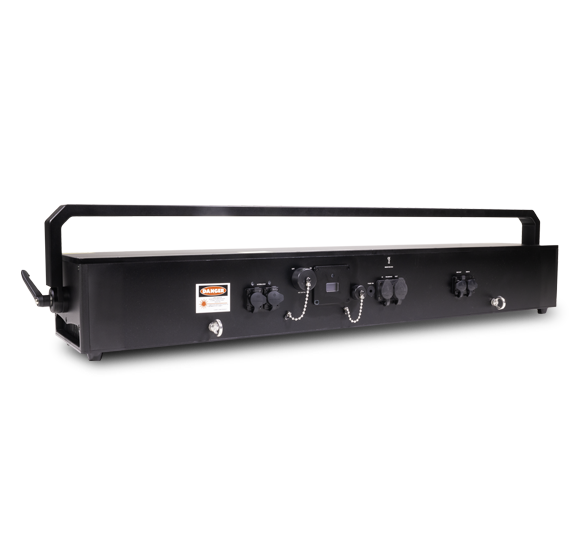

Transform any stage, concert, festival, or live event with the 12W LightSpace BeamBar, a powerful outdoor-rated RGB laser beam fixture designed to create stunning aerial effects and dynamic visual displays. Combining the intensity of laser technology with the versatility of a beam bar, this professional fixture delivers razor-sharp beams, full pixel control, and smooth scanning capabilities that elevate any production.

Featuring 12 watts of full-color RGB laser power, the BeamBar produces vibrant red, green, and blue beams that cut through the air with exceptional brightness and precision. Its narrow beam divergence creates clean, focused effects that remain visible across large venues, making it ideal for concerts, touring productions, festivals, nightclubs, and architectural lighting applications.

Built for professional use, the BeamBar features an IP65-rated housing, allowing it to perform reliably in both indoor and outdoor environments. The integrated PT-A40M scanning system enables smooth movement and creative beam effects, while DMX-512 control provides seamless integration into existing lighting systems for synchronized show programming.

Designed to withstand the demands of touring and large-scale productions, the BeamBar includes rugged construction, advanced TEC temperature control, and a heavy-duty travel case for safe transport and operation. Whether used as a standalone effect or as part of a larger lighting design, the 12W LightSpace USA BeamBar delivers professional-grade performance and unforgettable visual impact.

Specifications

• Laser Power: ≥13,200mW (12W Class RGB)
• Laser Source: Semiconductor Laser Diodes
• Type: Full-Color RGB Laser Beam Bar
• Red Laser: 600mW / 637nm (per module)
• Green Laser: 800mW / 525nm (per module)
• Blue Laser: 800mW / 445nm (per module)
• Beam Divergence: <1.4mrad (Full Angle)
• Modulation: 100KHz Analog
• Modulation Type: Linear Analog Modulation
• Scanner Type: PT-A40M
• Scanning System: 30Kpps @ 8°
• Scan Angle: 45°
• Control Protocol: DMX-512
• Ingress Rating: IP65
• Cooling System: TEC Temperature Control
• Operating Temperature: 14°F to 104°F
• Dimensions: 41 in × 9 in × 5 in
• Weight: 53 lbs
• Power Input: AC 100V–240V, 50/60Hz
• Power Consumption: 600W
• Compliance: FDA, IEC

Perfect For

• Concerts & music festivals
• Touring productions
• Outdoor events
• Nightclubs & entertainment venues
• Stage productions
• Architectural lighting
• Corporate events
• Permanent venue installations

Key Features

• Powerful 12W full-color RGB laser output
• Razor-sharp beam effects with full pixel control
• Advanced PT-A40M scanning system
• DMX-512 lighting control compatibility
• IP65-rated for indoor and outdoor use
• Smooth aerial effects and dynamic beam movements
• Heavy-duty construction for touring applications
• Includes travel case and complete safety package

What’s Included

• Laser Projector
• Heavy-Duty Travel Case
• Power Cord
• Safety Key
• Metal Safety Wire
• E-Stop Box
• E-Stop Y45 Connector
• E-Stop Safety Key
