High-Power Laser Output

The RAW 10 FB4 features 2,700mW red (638nm), 2,700mW green (520nm), and 4,800mW blue (450nm) diodes. Together, these provide a bright and balanced white light, perfect for eye-catching displays. The laser scans at 30,000 points per second at 8°, delivering smooth and accurate beam movements. The wide 50° scan angle allows it to cover large spaces, making it great for big venues. Its 50kHz analog modulation ensures smooth color changes, making fade-ins, fade-outs, and other effects look professional.

Integrated FB4 Control System

The RAW 10 FB4 includes the FB4 control system, which allows easy management of lasers from a PC, lighting console, or in auto mode. It supports major lighting control options like DMX, ArtNet, sACN, and timecode, making it simple to fit into advanced setups. The included QuickShow software lets users design and program their laser shows. The MoboLaser app (available on Apple and Android) allows mobile control, making adjustments quick and easy on-site.

Connectivity and Safety Features

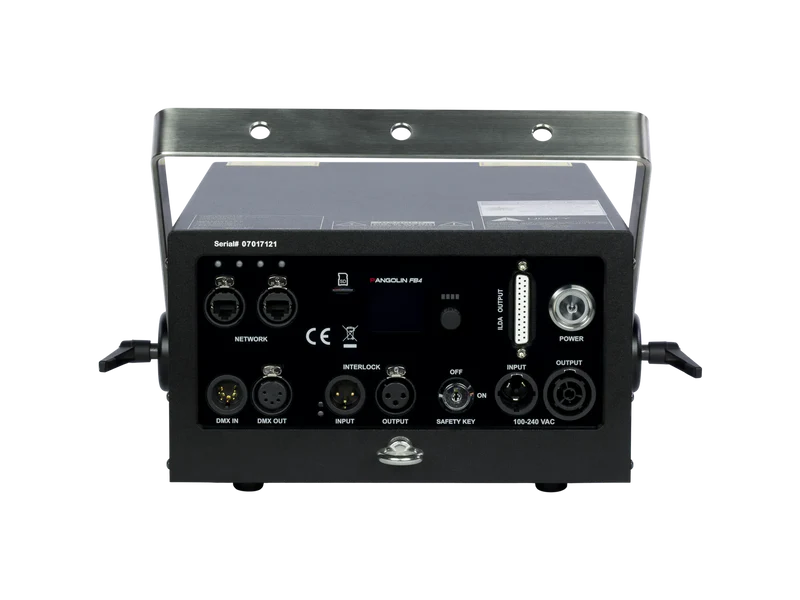

The RAW 10 FB4 has multiple connection options, including Ethernet, DMX in/out, power in/out, ILDA out, and E-STOP. A built-in network switch helps sync multiple projectors for larger shows, making it easy to create multi-laser performances.

Safety is a priority, and the RAW 10 FB4 meets EN 60825-1 and FDA regulations. Key safety features include a keyed interlock, emission delay, magnetic interlock, scan-fail safety, and a mechanical shutter. These features keep both users and audiences safe during shows. The laser also allows for external adjustments to its size, position, rotation, and color, giving users full control over their displays.

Key Features:

• 10W full-color output for bright and clear visuals.
• 30,000 points per second scanning speed for smooth shows.
• Analog modulation for seamless color transitions.
• FB4 control system with support for DMX, ArtNet, sACN, and QuickShow software.
• Sound active mode to sync effects with music.
• Built-in network switch for easy setup of multiple projectors.
• Complies with EN 60825-1 and FDA regulations for safe operation.

What’s Included:

• RAW 10 FB4 laser projector
• QuickShow software
• Protective case
• E-STOP remote with a 10-meter cable
• Ethernet cable (10 meters)
• Power cable (1.5 meters)
• Safety interlock and keys
